Hexagonal Drive Hydraulic Torque Wrench |

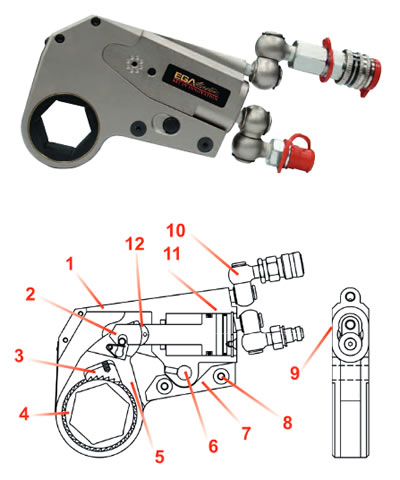

- 1. "Peanut-shaped" cylinder - fit both cylinder & link in confined spaces.
- 2. Engagement Rod - Automatically engages link on the 1st stroke.
- 3. Never-lock drive paw - ensures tool will never lock on.
- 4. Multi-tooth ratchet - allows for 27° torque stroke acuracy.
- 5. One piece drive plate - robust alloy provides small nose radius.
- 6. Link Pin - one pin for link to cylinder engagement, no tools required.
- 7. In-line reaction pad - assures free reaction every time.
- 8. Steel alignment pin - assures equal load displacement between side plates.
- 9. Completely safe design - cylinder & link width are equal for tight fits.
- 10.360° x 360° swivel - Allows hydraulic hose to be clear on all applications.
- 11. Propietary piston seal - provides years of maintenance free use.
- 12. Slider - prevents wear of piston and drive plate & reduces cost of repairs.
|
 |

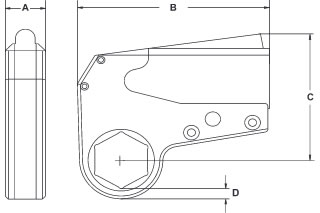

Hexagonal Drive Hydraulic Torque Wrench specifications
| Model |
Nm |
Ft.lbs |
Accuracy |
A |
B |
C |
D |
| 56586 |
61-759 |
45-560 |
± 3% |
20 |
110 |
85 |
6 |
| 56573 |
260-2614 |
192-1928 |
± 3% |
32 |
165 |
100 |
9 |
| 56587 |
535-5335 |
395-3950 |
± 3% |
41 |
200 |
145 |
12 |
| 56588 |
1125-11699 |
830-8630 |
± 3% |
50 |
260 |
180 |
14 |
| 56589 |
2115-22503 |
1560-16600 |
± 3% |
65 |
330 |
195 |
17 |
| 56590 |
4365-48335 |
3220-35650 |
± 3% |
80 |
400 |
240 |
24 |
| 56591 |
6575-64239 |
4850-47380 |
± 3% |
125 |
430 |
260 |
24 |
|
 |
 |

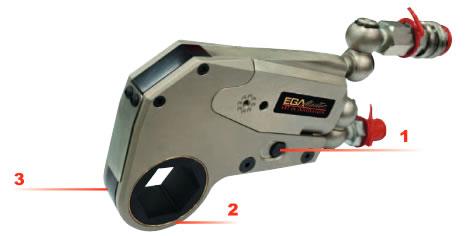

- 1. Without tools, the pin can be easily
removed to change the size of cassette.
- 2. Small nose radius to use in tight places.
- 3. Compact size for use in inaccesible places.
|
Wholesale export & quantity
discounts available.
|
